Carbide 3D Nomad CNC Router
| Carbide 3D Nomad CNC Router |
|---|
| Tool Type: “CNC Router” |
| Location: “Innovations Workshop” |
| Supervisor | Tool Lead |
| David Bothman | “WW Name” |
| (805) 893-4125 | (###) ###-#### |
| bothman@cnsi.ucsb.edu | “WW Email” |
| Description: “Bench top CNC Router” |
| Manufacturer: “Carbide 3D” |
About

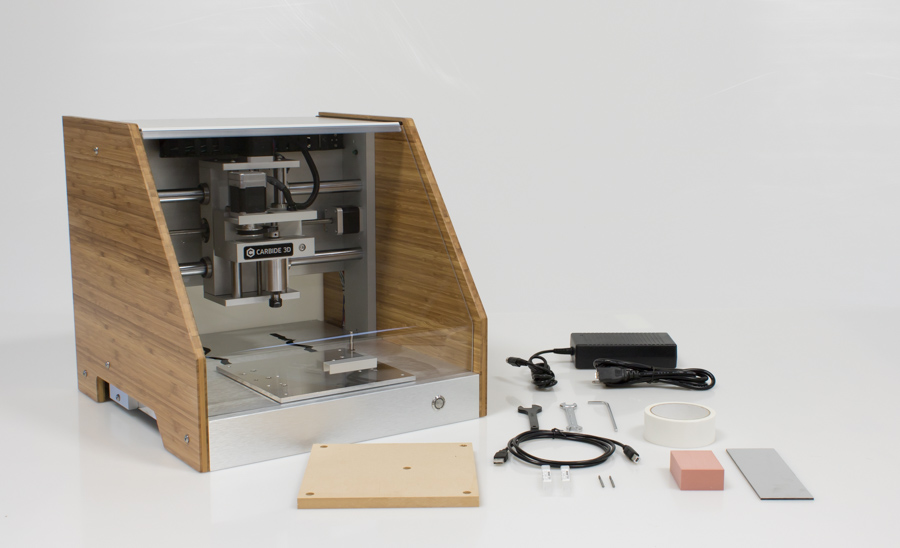

The Carbide 3D Nomad is a small bench top CNC router capable of cutting wood, plastic, and soft metals with conservative feeds and speeds.
Training Documentation
Detailed Specifications
- Cutting Volume: 8“ x 8” x 3“ (X,Y,Z)
- Spindle Speed: 2,000-10,000 RPM
- Software: Carbide Motion, Mesh Cam
- Spindle Taper: ER11
Safety Concerns
- Safety Glasses must be worn when machine is running
- The acrylic shield must be in place and lowered before starting a job
- The spindle must be completely stopped before adjusting or removing work piece
- After milling is completed, the work piece will have developed sharp burrs which must be removed with a hand file or sandpaper
