Diamond Saw

Diamond Saw
Tool Type: “Cutting Tool”
Location: “Microfluidics Lab”
Supervisor Tool Lead
David Bothman
(805) 893-4125
bothman@cnsi.ucsb.edu
Description: “Trim Saw 2”
Manufacturer: “Allied”

About

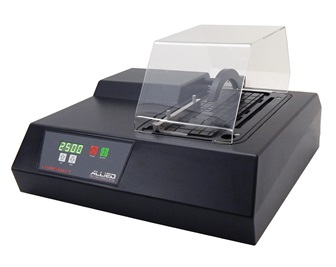

The Trimsaw 2 is a saw designed for rapid sectioning of printed circuit boards, ceramic substrates and other abrasive non metals. Contains a built in reservoir which can be used to feed lubrication directly to the blade.


Training

trimsaw2SOP


Detailed Specifications

Motor power: .25 HP Speed range: 500-3000 RPM by 100 RPM increments Cutting platform: 6.75“ x 12.5” Blade size: 4“-6”
