Zeiss Inverted Microscope

Zeiss Axio Observer 7
Tool Type: “Inverted Microscope”
Location: “Elings Hall 2411”
Supervisor Tool Lead
Juan Manuel Urueña “WW Name”
jmuruena@ucsb.edu “WW Email”
Description: “Inverted Microscope”
Manufacturer: “Zeiss”

About

Inverted microscope Axio Observer 7 ACR for transmitted-light brightfield LED, phase contrast, differential interference contrast, fluorescence with Colibri 7; equipped with ACR function, Scanning Stage STEP and Docking station


Detailed Specifications

Objectives


Filter Sets

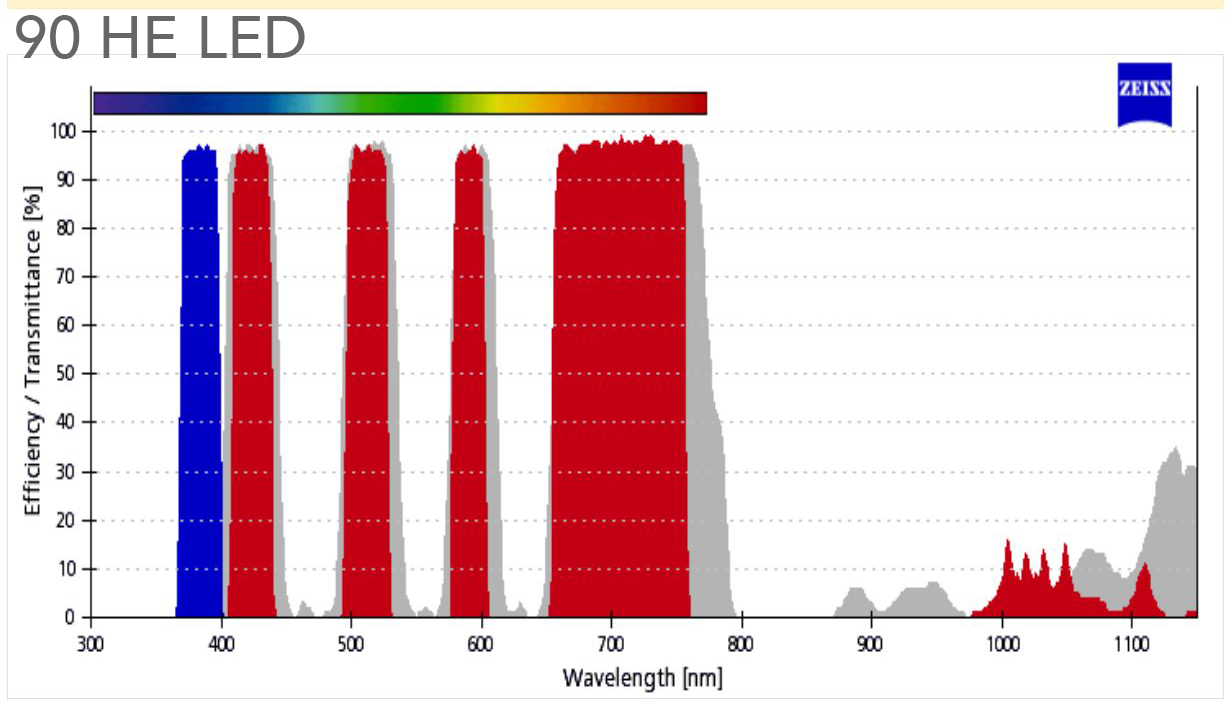

Filter Set Specs


Safety Concerns

Read the manufactures manual before first use. If the Zeiss inverted microscope acts in a way that is not described by the manual, turn off the printer and contact Zeiss.

  • Never place your finger near the machine until all parts have stopped moving. Moving parts can cause serious injury
  • Never clean or service the microscope while it is on
  • The microscope uses UV light to excite some dyes. Never look directly at LED light nor expose skin. Serious injury may result from exposure
  • Disassembling the microscope may cause an electric shock or damage to the instrument. Do not disassemble any parts of the microscope not mentioned in the instruction manual. In case of a problem with the microscope

Operating Procedures

Insert Text Here!


Reference Documentation

Training Documentation
