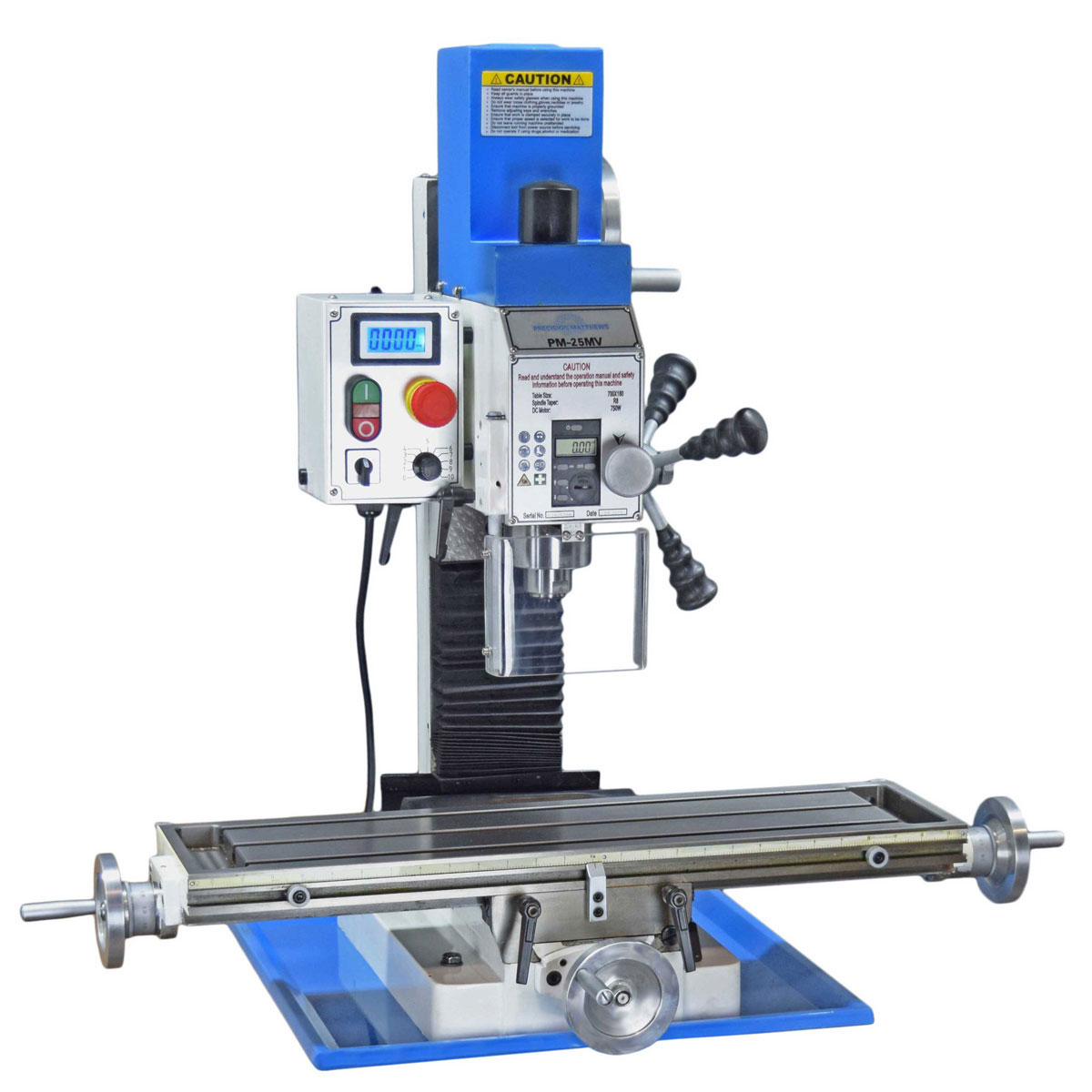

This tool is a bench top milling machine capable of manually machining small parts out of metals, woods, and plastic. Lacking the rigidity of most larger milling machines, this machine falls somewhere between the Haas CNC mill and the ShopBot desktop router and care should be used when selecting appropriate depth of cut.

Milling Machine SOP

Table Size: 19“ x 7” x 13“
Spindle Taper: R8
RPM range: 50-2500 RPM
Motor HP: 1 HP
Vice gripping range: 4.5” x 4“

• Untrained or unsupervised operators risk serious injury.
• Risk of metal splinters and burns from flying chips. Wear safety goggles, closed-toe shoes, long pants.
• Keep body parts clear of spindle and workpiece while machine is moving
• Take care when handling heavy objects
• Make sure the part and tool are secured before starting a machining operation
• Remove chuck keys and other tools before starting the machine

Periodic Maintenance
coe_student_machine_shop_safety_handout.pdf
pm-25mv_manual.pdf
pm-25mv_sop.pdf
pm_25mv_mill_handout.pdf
