Biotage Seleck with ELSD (evaporative light-scattering detector)

Biotage Seleck and ELSD
Tool Type: Evaporation System
Location: Elings Hall 2440
Supervisor Tool Lead
Morgan Bates Zachary Nett
morganbates@ucsb.edu zjnett@ucsb.edu
Description: Biotage Seleck and ELSD
Manufacturer: Biotage

About

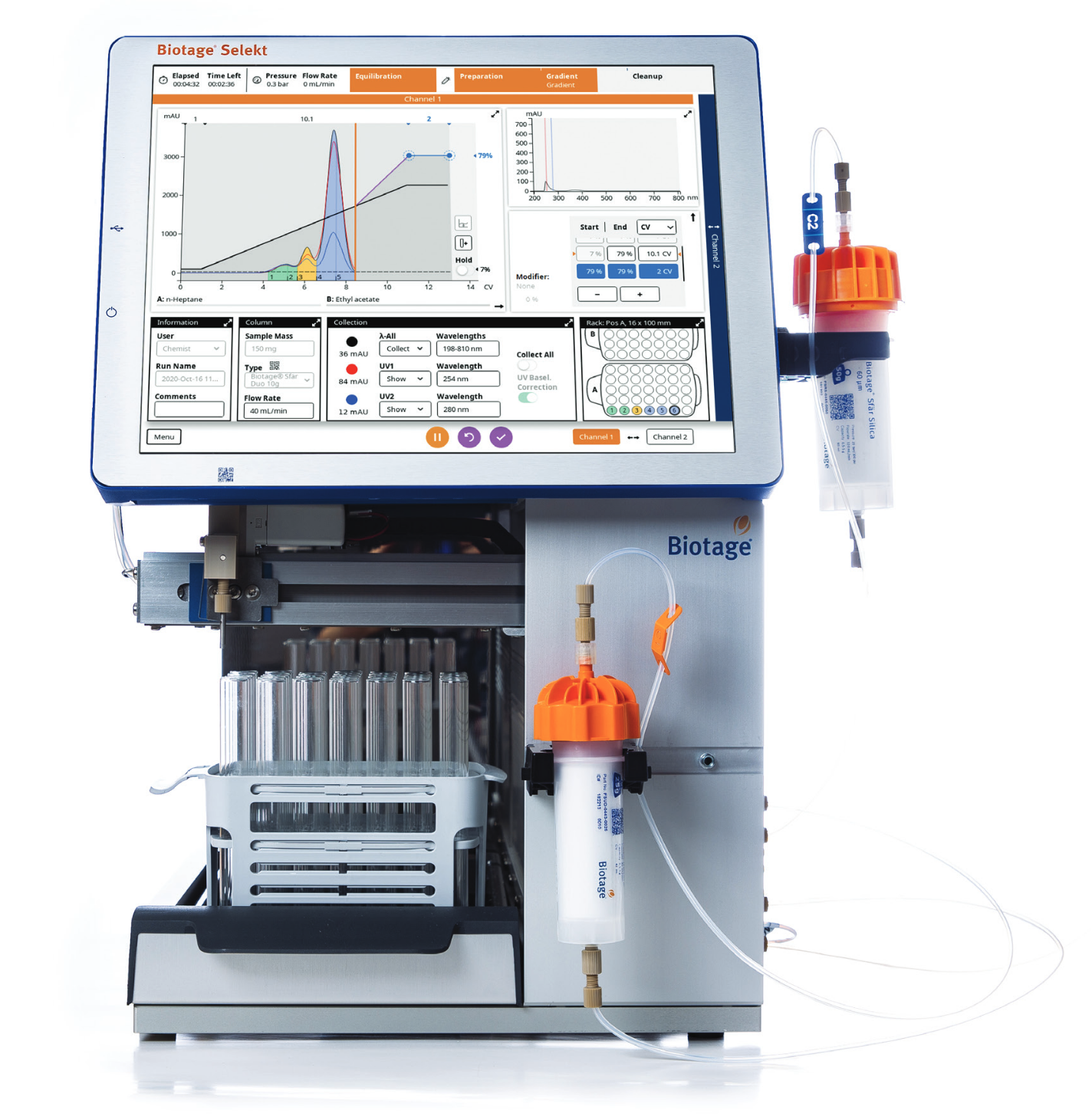

Biotage ® Selekt is an automated flash purification system. The system has two column channels with an external ELSD (evaporative light-scattering detector) for flash chromatography to purify compounds with little or no UV absorption.


Detailed Specifications

Column Channels: 2
Flow Rate Range: 1-300 mL/min
Pressure Range: 0-30 bar (0-3,000 kPa: 0-435 psi)
QR code reader
RFID enabled rack


Safety Concerns

Biotage V-10 is not compatible with the following solutions:
HCl (hydrochloric acid)
NaOH (sodium hydroxide)
HNO₃ (nitric acid)
H₂SO₄ (sulphuric acid)
H₂O₂ (hydrogen peroxide)
NaClO (sodium hypochlorite)

Avoid sudden changes in pressure and temperature
Avoid any mechanical shock
Properly dispose of solvents


Reference Documentation
